GENERATOR SET SPECIFICATIONS
Standby Power (kVA) | 13.75 |
Standby Power (kW) | 11 |
Prime Power (kVA) | 12.5 |
Prime Power (kW) | 10 |
Power Factor (Cos Phi) | 0.8 |
Diesel Engine Model | 403D-15G |
Frequency (Hz) | 50 (60) |
Rated Speed (rpm) | 1500 (1800) |
Phase | 3 |
Standrad Voltage (V) | 400/230 (220/127) |
Available Voltage (V) | 380/220 415/240 (440/254) |
GENERATOR SET DIMENSIONS

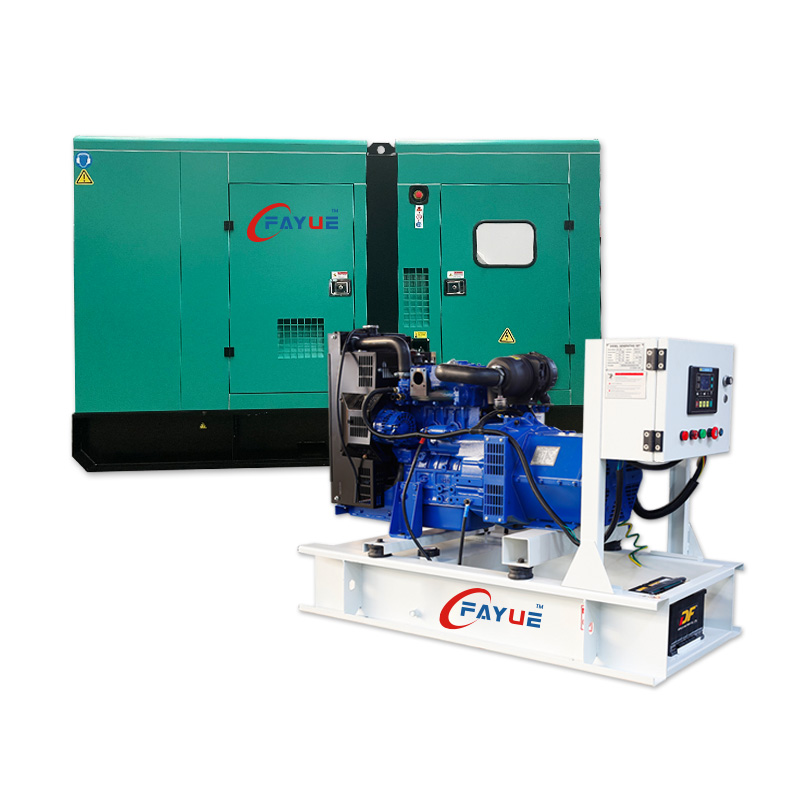

Type | Open Set Silent Set |
Length - Maximum | 1600 2000 |
Width - Maximum | 730 730 |
Height - Maximum | 1310 1140 |
ENGINE SPECIFICATIONS
Engine model | 403D-15G |
Engine type | 4 stroke diesel |
Governor type | Mechanical |
Injection type | Direct |
Aspiration type | Naturally Aspirated |
Number of cylinders and arrangement | 3-L |
Bore and stroke (mm*mm) | 84*90 |
Displacement (L) | 1.496 |
Cooling system | water-cooled |
Fuel consumption @75% load (L/H) | 2.79 |
ALTERNATOR SPECIFICATIONS
Number of phase | 3 |
Poles | 4 |
Winding Connections (standard) | Star-series |
Insulation | H class |
Enclosure (accordingly to IEC-34-5) | IP23 |
Excitation system | Self-excited, brushless |
Voltage regulator | AVR |
