POWER OUTPUT
Prime Rating - 10 kW (12.5 kVA)
Standby Rating - 11 kW (13.7 kVA) Single-phase (Three-phase), 50 Hertz, 1.0 (0.8) PF

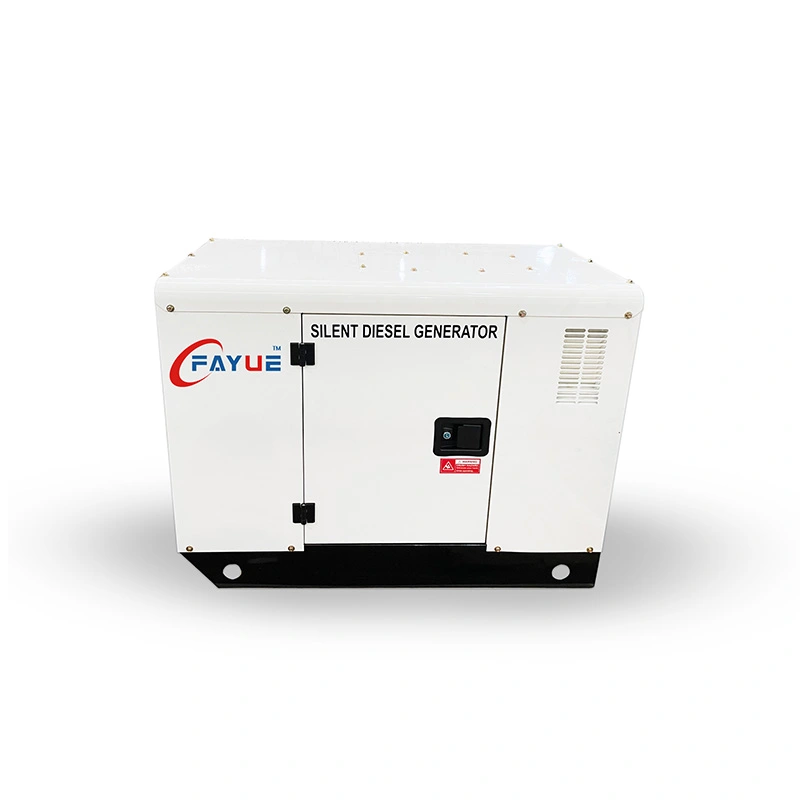

FDG12S SILENT GENERATOR
Heavy duty, 4-cycle, variable speed fan, twin-cylinder diesel engine provides maximum reliability.
Brushless alternator reduces service and maintenance requirements. Class H protection.
Open delta alternator design provides virtually unlimited excitation for maximum motor starting capability.
Automatic voltage regulator (AVR) provides precise regulation.
Electronic governor system maintains frequency to ±0.25%. Full load acceptance of standby nameplate rating in one step.
Soundproof, weather resistant, steel housing provides operation at 67dB (A) at 7meters. Fully lockable enclosure allows safety operation. Outdoor operation available. Internal fuel tank with direct observing glass, and fuel level meter display on control panel.
E-coat and powder coat paint provides durability and weather protection.
Digital engine gauges including oil pressure, water temperature, battery volts, engine speed, and fuel level. Analog generator instrumentation including Ampere meter, Voltage meter, frequency meter, ammeter phase selector switch, voltmeter phase selector switch. Analog generator instrumentation and regulator adjustment.
Professional generator controller:
High visibility LCD display with heated screen and alphanumeric readout.
IP65 Protection standard, operational temperature range of - 40° to 85° C.
Modbus interface for gauge panel and expansion options.
DPF cleaningcycle indication.
Log record for inspection
Automatic safety shutdown system monitors the water temperature, engine oil pressure, low coolant, low DEF, overspeed, and overcrank. Warning lights indicate abnormal conditions.
Fuel/water separator. Removes condensation from fuel for extended engine life.
Emergency stop switch - when manually activated, shuts down in any emergency.
