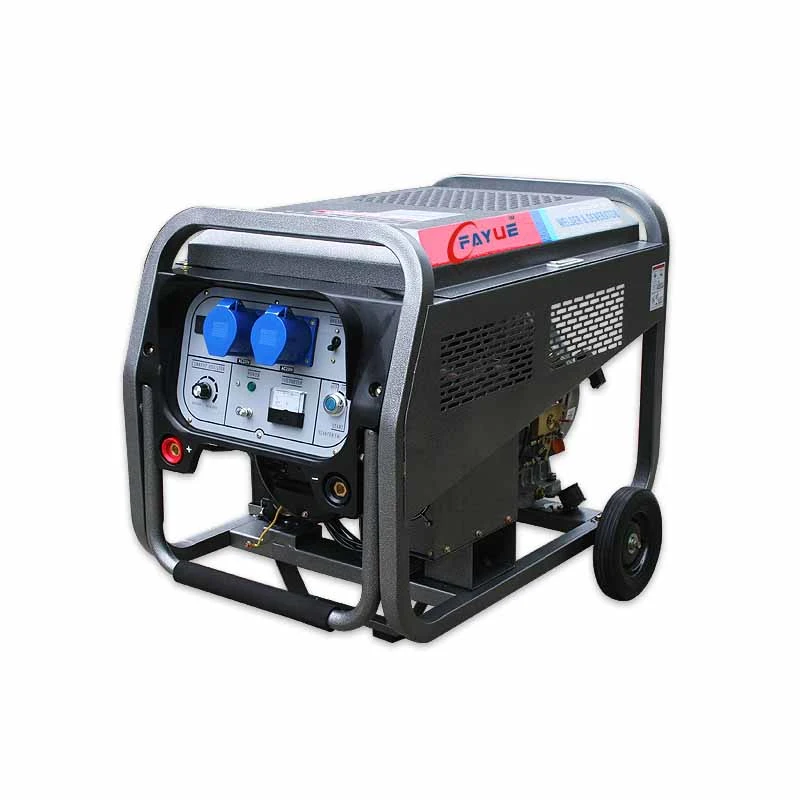

GENERATOR SPECIFICATIONS
Model | FDW200(E) |
Alternator type | Brush, 2-pole, Welding |
Voltage (V) | 110-240 |
Frequency (Hz) | 50/60 |
Rate. AC Output (kW) | 4.5/5.0 |
Max. AC Output (kW) | 5.0/5.5 |
Power Factor | 1.0 |
DC Output (V/A) | 12/6 |
Fuel consumption (kW.h) | ≤370 |
Noise level at 7 meter, dB(A) | ≤82 |
Engine Model | FA186F |
Engine Type | Single-cylinder, Vertical, 4-stroke, air-cooled, direction injection |
Displacement (cc) | 474 |
Engine Speed (rpm) | 3000/3600 |
Starting Method | Recoil/Electric |
Lube Oil Capacity (L) | 1.65 |
Fuel Capacity (L) | 12.5 |
Dimension (L*W*H) mm | 800*525*600 |
Net Weight (kg) | 123(135) |
WELDER SPECIFICATIONS
No load Voltage (V) | 62~68 |
Operating welding voltage (V) | 22~26 |
Operation Current (A) | 50~150 |
Max. Arcing Current (A) | 200 |
Duty Cycle (a) | 60% |
