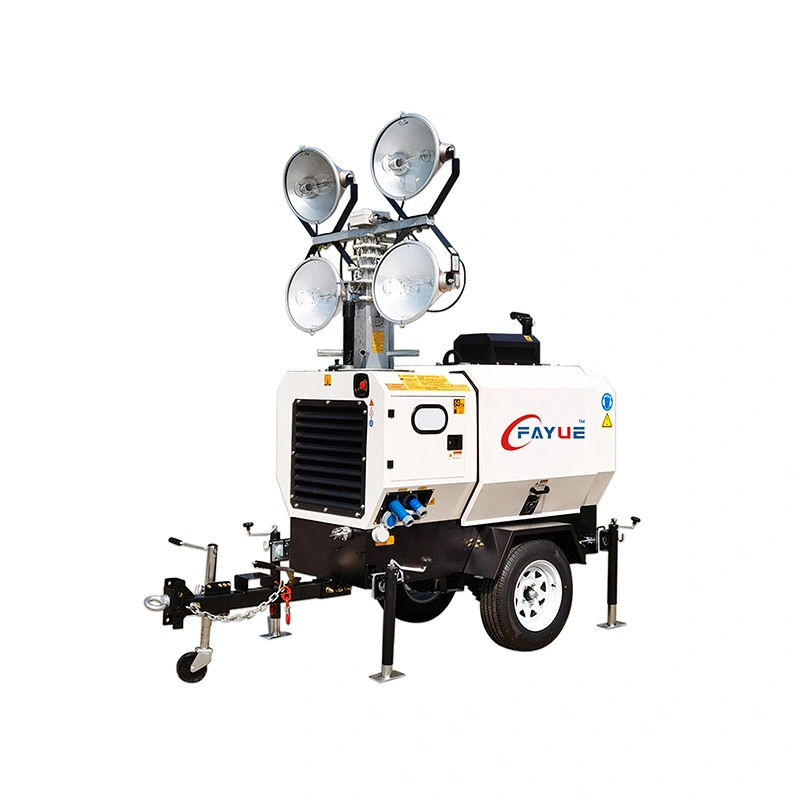

LIGHT TOWER SPECIFICATIONS
Model | FY-LT2(E) |
Fuel Tank Capacity | 80L |
Noise Level @ 7M | ≤65 dB(A) |
Control System | Deep Sea DSEL401 |
Battery System | 12V |
LIGHT & TOWER
Lamps Power | 4*320W LED |
Luminous Flux | 140,800-185,600 lm |
Lifetime of lights | 50,000 hours |
Tower Height | 8M |
Mast Extension | Manual (FY-LT2) / Electric (FY-LT5E); Vertical Type |
Mast Rotation | Manual, 340° |
Lamp Tilting | Manual (Electirc & remote control Optional) |
ENGINE
Engine Brand | Kubota / Kohler |
Engine Model | Z482-E3B / KDW 702 |
Displacement | 0.479 / 0.686 L |
Number of Cylinders | 2 in line |
Engine Speed | 1500 / 1800 rpm @ 50/60Hz |
Fuel Consumption | ＜1.2 L/H; (270 / 280 g/kW.h) |
Cont. Running Time (100% load) | ＞60 Hours |
Engine Type | Water-cooled, 4-stroke, Diesel |
ALTERNATOR & GEN-SET
Alternator Brand | Meccalte / Fayue |
Alternator Model | LT3N-75/4 / FY132BS |
Excitation System | Brushless, self-exciting |
Protection / Insulation Class | IP21 / H |
Gen-set Rated Power | 2.5 / 2.8 kW @ 50Hz, 1-phase, P.F.1.0 |
Output Voltage | 110/120/220/230/240V |
TRAILER
Wheel Size | 13" |
Suspension | Leaf Spring, Single Axle |
Tow-bar Height | Fixed (Adjustable Optional) |
Hitch | Ball 2" / Ball 50mm / Ring |
Hand Brake | Standard (Intertial brake optional) |
Stabilizers | 4, Manual (3 outriggers+1 wheeled jack) |
Taillights | Turning, Braking |
Altitude | ≤1500 M |
Ambient Temperature | -25℃ ~ 50℃ |
Trailling Speed | ＜80 kM/H |
Wind Speed | ＜60 kM/H |
Place of Use | Outdoors |
DIMENSIONS & WEIGHT
Dimensions Retracted (LxWxH) mm | 2310*1150*2890 |
Dry Weight (kg) | 870 |
Container Load 20'GP/40'GP(units) | 10/20 |
