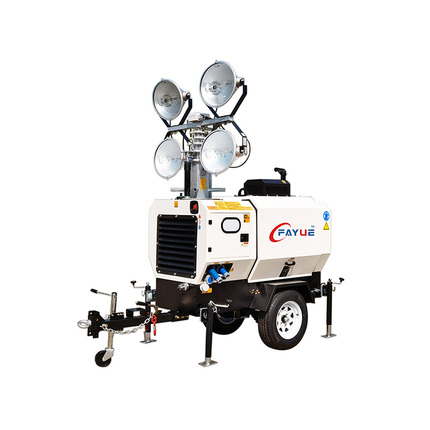

LIGHT TOWER SPECIFICATIONS
Model | FY-LT6H |
Fuel Tank Capacity | 145L |
Noise Level @ 7M | ≤65 dB(A) |
Control System | Deep Sea DSEL401 |
Battery System | 12V |
LIGHT & TOWER
Lamps Power | 4*1000W Metal Halide(Oval) / 4*350W LED |
Luminous Flux | 440,000 / 168,000-196,000 lm |
Lifetime of lights | 5,000 / 50,000 hours |
Tower Height | 8M |
Mast Extension | Hydraulic; Vertical Type |
Mast Rotation | Manual, 359° |
Lamp Tilting | Manual (Electirc & remote control Optional) |
ENGINE
Engine Brand | Kubota / Perkins / Kohler / Yanmar / Yangdong |
Engine Model | D1105-E2BG / 403D-11G / KDW1003 / 3TNV76 / YD380D |
Displacement | 1.123 / 1.131 / 1.028 / 1.116 / 1.357 L |
Number of Cylinders | 3 in line |
Engine Speed | 1500 / 1800 rpm @ 50/60Hz |
Fuel Consumption | <2.7 / 3.0 / 2.5 / 2.5 / 3.0 L/H; |
Cont. Running Time (100% load) | >50 Hours |
Engine Type | Water-cooled, 4-stroke, Diesel |
ALTERNATOR & GEN-SET
Alternator Brand | Meccalte / Stamford / Fayue |
Alternator Model | LT3N-75/4 / PI044D / FY132D |
Excitation System | Brushless, self-exciting |
Protection / Insulation Class | IP21, IP23 / H |
Gen-set Rated Power | 6 / 7.5 kW @ 50/60Hz, 1-phase, P.F.1.0 |
Output Voltage | 110/120/220/230/240V |
TRAILER
Wheel Size | 14" |
Suspension | Leaf Spring, Single Axle |
Tow-bar Height | Fixed (Adjustable Optional) |
Hitch | Ball 2" / Ball 50mm / Ring |
Hand Brake | Standard (Intertial brake optional) |
Stabilizers | 5, Manual (4 outriggers+1 wheeled jack) |
Taillights | Turning, Braking |
Altitude | ≤1500 M |
Ambient Temperature | -25℃ ~ 50℃ |
Trailling Speed | <80 kM/H |
Wind Speed | <60 kM/H |
Place of Use | Outdoors |
DIMENSIONS & WEIGHT
Dimensions Retracted (LxWxH) mm | 3030*1140*2240 |
Dry Weight (kg) | 1150 |
Container Load 20'GP/40'GP(units) | 6/12 |
